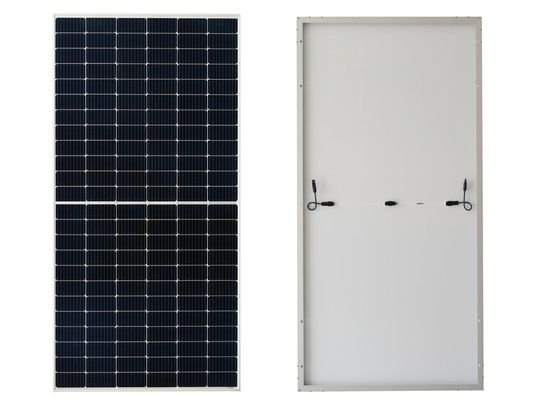

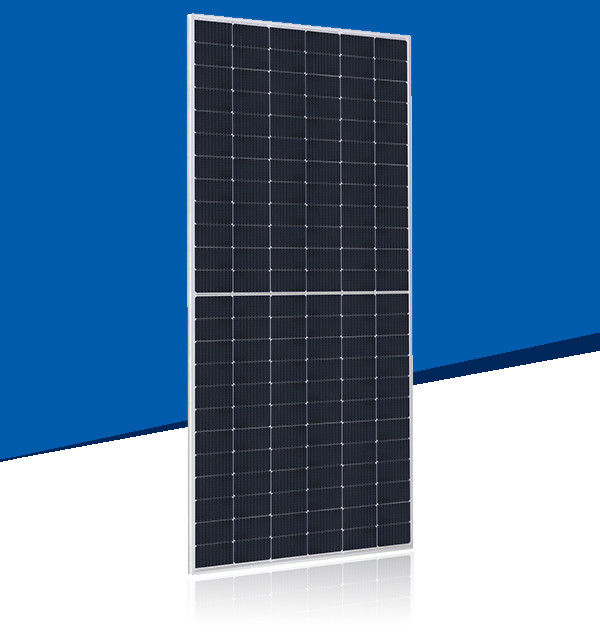

525WP 530WP 535WP 540WP 545WP monocrystalline PV module popular solar panels

Name: 525WP 530WP 535WP 540WP 545WP monocrystalline PV module popular solar panels
Brand: Henan Tianfon New Energy Tech. Co., Ltd
SKU: Solar Panels
Price: 0.19 USD
Availability: InStock

Nazwa Marki:	TIANFON
Numer modelu:	Solar Panels
MOQ:	100pcs
Price:	USD0.19-0.22/W
Warunki płatności:	L/C, T/T
Umiejętność dostaw:	1000 Watt/Watts

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Place of Origin:

CHINA

Orzecznictwo:

TUV,SGS,CE, ISO 9001,ISO 14001,OHSAS 18001

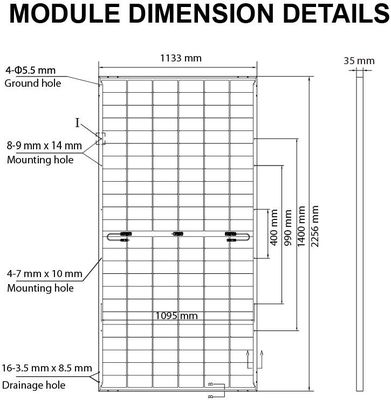

Outer dimensions:

2256x1133x35mm

Weight:

32.3 kg

Company Certificate:

TUV,SGS,CE, ISO 9001,ISO 14001,OHSAS 18001

front glass thickness:

2.0mm

Cell (quantity / material):

144 / monocrystalline silicon

frame technology:

aluminum, silver anodized

cable length(IEC/UL):

portrait:300mm, landscape: 1400mm

cable diameter(IEC/UL):

4mm2/12AWG

maxmum mechanical test load:

5400pa(front)/2400pa(back)

connector type(IEC/UL):

HCB40/MC4-EV02(optional)

Payment Terms:

L/C, T/T

Packaging Details:

Packing unit: 31pcs/box,number of modules per 40‘HQ container :620pcs

Supply Ability:

1000 Watt/Watts

Podkreślić:

545WP Monocrystalline PV Module

540WP Monocrystalline PV Module

535WP Monocrystalline Solar Panel

Opis produktu

CHNT 525WP 530WP 535WP 540WP 545WP monocrystalline PV module high power 182 F-BH series solar panels In the field of photovoltaic, we are not only ranked top in the production, but also lead front in the innovation. 525W-545w monocrystalline PV module, CHSM 72m(DG)/F-BH 182 series, the newest feature is creat sustainalbe and efficient green engergy, with +5W output positive tolerance, this is the advantage beyond over ordinary solar panels. It was spread used to the ground
